Flexible Ceramic Crawler-type Heater

Flexible Ceramic Crawler-type Heater
Location: China
Business Type: Manufacturer, Exporter
Brands: Fangzheng
Certificate: ISO9001;CE;WRAS;GSG;National Torch Program Certificate
Terms of payment and delivery: 30% down payment;70% before shipment/FOB CIF
Minimum order quantity: 1 set
Price: Consultation
Packing details: Wooden pallet
Delivery time: 1-4 months
Payment method: T/T L/C
Product informationAbout Us

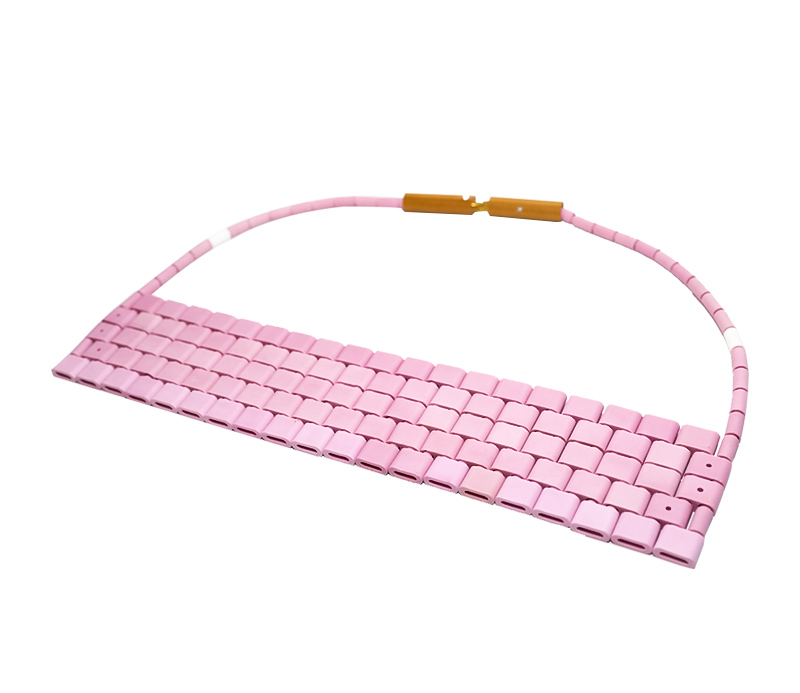

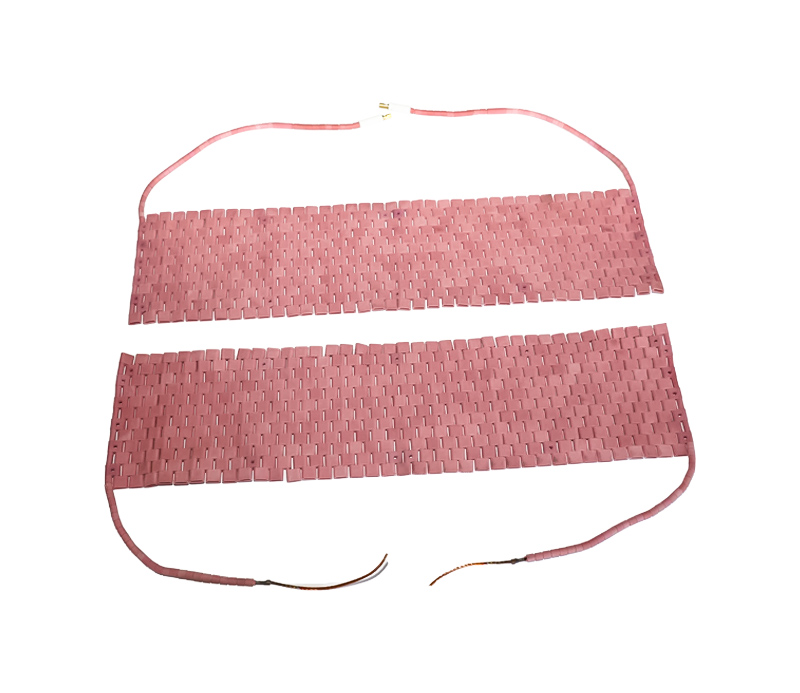

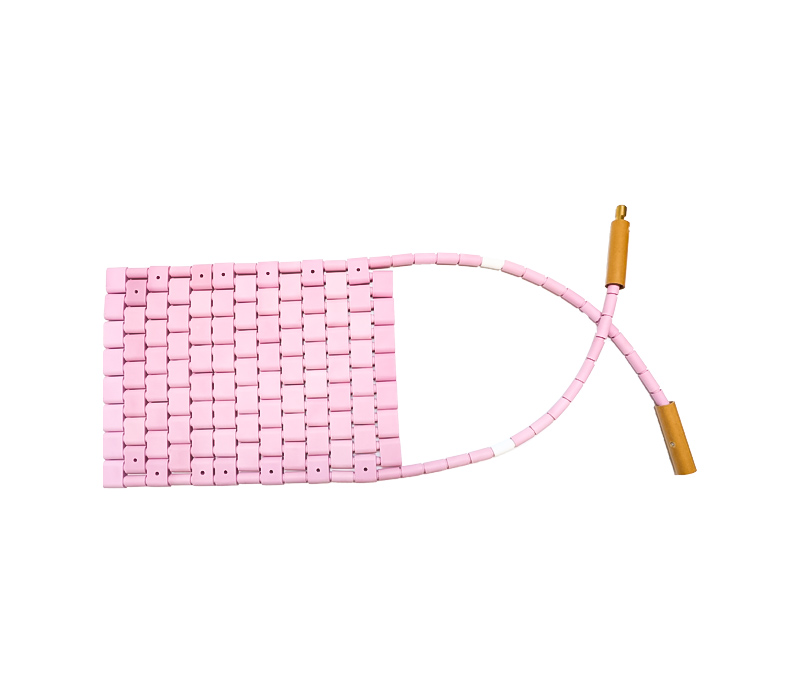

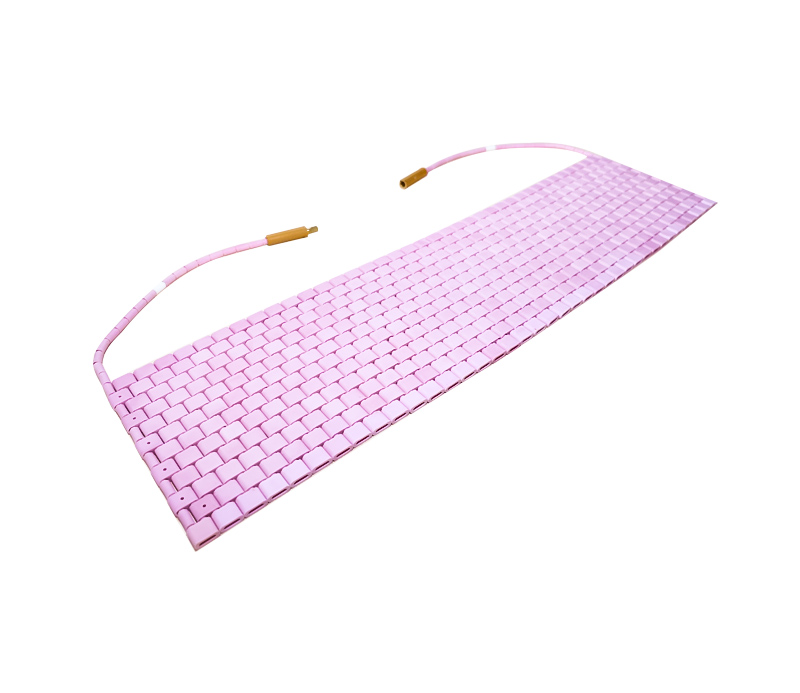

Ceramic Heater-Flexible Alumina Ceramic heating Pad Heater Manufacturers

Ceramic heater pad also called Flexible Ceramic Pad Heater,Alumina Ceramic heating Pad, with high quality nickel chromium alloy wire cable, high purity alumina ceramic coat made crawler or rope type and other products. It can according to the shape, size, can be spliced, bending, twisting clingy heating workpiece.

It has a wide use, heating speed, high heat utilization rate, convenient operation, etc. The highest surface temperature up to 1050 °C.Suitable for all kinds of metal components, such as large, high pressure vessel, bridge, tower in high pressure pipe welding preheating, eliminating stress after welding. Can also be used in chemical industry pipeline, auxiliary heating container, and any indoor or outdoor, is currently the most advanced and practical local heating equipment.

Production is not limited by the models and specifications. It's one of the most from the size of the welding industry is currently one of the most ideal innovative and practical heat treatment heater. Maximum working temperature of 1,050 degrees. Ceramic heater can be adapted, especially in chemical fiber, plastics, plastic machinery, electronics, medicine, food and a variety of heating pipeline voltage from 55V, 110V, 220V, 380V, maximum power is about 45W/m2, compared with the traditional electric heater energy consumption can be reduced by 30%.

Features

1.Fast Heat Raising,Max Temperature 1050 Centigrade

2.High Hot Utilization

3.Good Heat Insulation

4.Significant Energy-saving

5.Low Labor Intensity

6.Safe And Reliable To Use



Type

Width(mm)

Length(mm)

Rating(kW)

Current(amp)

Voltage(V)

CP3- 60V

76

736

2.7kW

45amp

60V

CP4- 60V

102

533

2.7kW

45amp

60V

CP6- 60V

152

381

2.7kW

45amp

60V

CP8- 60V

203

279

2.7kW

45amp

60V

CP10- 60V

254

229

2.7kW

45amp

60V

CP12- 60V

305

178

2.7kW

45amp

60V

CP15- 60V

381

152

2.7kW

45amp

60V

CP18- 60V

457

127

2.7kW

45amp

60V

CP21- 60V

533

102

2.7kW

45amp

60V

CP26- 60V

660

89

2.7kW

45amp

60V

CP50- 60V

1270

44

2.7kW

45amp

60V

0
Views: 1,576

Company Profile

As a famous Flexible Ceramic Crawler-type Heater suppliers and China Flexible Ceramic Crawler-type Heater manufacturers, Wujiang Fangzheng Electric Heater Co., Ltd. specializes in producing and selling ceramic electric heaters, heat treatment equipment, welding rod oven, flux oven, heat treatment furnace ,welding auxiliary equipment and Flexible Ceramic Crawler-type Heater for sale. Located at the junction of Jiangsu, Zhejiang and Shanghai - Wujiang, the transportation is very convenient. Over the years, with the advantages of advanced technology and talents, it has developed rapidly, and has advanced production equipment such as international first-class numerical control shearing, folding, punching and so on. Advanced technology and equipment, complete testing means, strong design and development capabilities, self-developed production of micro-computer heat treatment temperature control box to achieve the world's leading technology level. Fully implement the international advanced quality management system to ensure the quality of products.

The main products are: ceramic electric heater, heat treatment temperature control equipment, welding rod flux oven, electric heating blast dryer, electric furnace, flux recovery conveying device, industrial kiln, etc. Over the years, it has been widely used in national key projects, mainly involving the construction and maintenance projects of boilers, power stations, steel, chemical industry, bridges, shipbuilding, pressure vessels, heavy machinery, large steel structural parts industry, such as pre-welding preheating, post-welding hydrogen elimination, normalizing, tempering, local heat treatment, integral heat treatment, and heating, drying, hot loading and hot unloading of related industries. Also engaged in the production of heat treatment equipment required accessories and ancillary products; a professional technical service team to provide users with quality after-sales service!

Take science and technology as the leader, take market as the guide, take sincerity as the credit, win by quality, uphold the tenet of "quality first, credit first", and our factory provide high-quality wholesale Flexible Ceramic Crawler-type Heater and sincere service for users at home and abroad! Wish to cooperate sincerely with friends from all walks of life for common development!
